DAMAGE CONTROL PRODUCTS

We manufacture a comprehensive range of standard Damage Control Equipment designed to help maintain vessel safety and operability in emergency situations. Built for reliability and rapid deployment, our solutions support critical response efforts to contain damage, protect personnel, and ensure mission continuity.

EMMS Clamps

Fixed EMMS Clamps

EMMS Clamps form part of the standard Damage Control Equipment designed to maintain the vessel in a safe operational condition during emergencies.

Manufactured from robust materials' they are designed for speedy application allowing crew members to react, safely and efficiently to stabilize damage.

2040-99-787-8173 "EMMS" Clamps 190mm X 403mm (Service Drawing: 003504594)

2040-99-787-8172 "EMMS" Clamps 140mm X 353mm (Service Drawing: 003504594)

EMMS Clamps - Universal Movement

The Universal Movement EMMS Clamps form part of the standard Damage Control Equipment designed to allow the fitting of “shoring timbers” to be set in any desired position, to help maintain the vessel in a safe operational condition during emergencies.

Manufactured from robust materials' they are designed for speedy application allowing crew members to react, safely and efficiently to stabilize damage.

99-904-2040 Swivel Head "EMMS" Clamps 140mm * 246mm (Clamp Type- Universal movement)

Splinter Boxs's

GRP Laminated Splinter Box's

The GRP Splinter manufactured by NSN Engineering Services Ltd conform to the requirements of Service Drawing Number: 004523968 Sheet 1. Produced using high quality materials and 1355PA- Fire Retardant Class 1 resin to complete the lamination, they are available in three sizes and are supplied complete with a bonded Rubber Seal.

These lightweight, robust Splinter Box’s provided a quick and secure method of repairing to a ship’s hull in an emergency situation.

99-339-4401 : 300mm Nominal Diameter

99-215-4579 : 450mm Nominal Diameter.

99-361-7439 : 600mm Nominal Diameter.

Steel Fabricated Splinter Box’s

The Steel Fabricated Splinter Box’s manufactured by NSN Engineering Services Ltd conform to the requirements of Service Drawing Number: 003503661/03 Sheet 1. Produced using high quality materials and finished with a corrosion protecting surface, they are available in four sizes and are supplied complete the Strongback Securing Arrangement and a bonded Rubber Seal.

Splinter Box’s provide a quick and secure method of repairing to a ship’s hull in an emergency situation.

2090-99-463-3937 SPLINTER BOXES 300x300

2090-99-463-3938 SPLINTER BOXES 350x350

2090-99-463-3939 SPLINTER BOXES 400x400

2090-99-780-4456 SPLINTER BOXES 450x450

Damage Control Timbers

Timber Products

NSN Engineering Services offers a comprehensive range of hardwood and softwood conical plugs and wedges, designed for use in naval damage control operations. These essential components are commonly employed aboard ships to stem leaks, isolate hull breaches, and manage emergency flooding scenarios. Supplied in ready-to-deploy kits or in custom quantities to meet your specific requirements, our timber products are a reliable choice for maritime environments where quick, effective response is critical.

An example of the range can be seen in the image to the left, and detailed product dimensions are listed below.

Soft Wood Wedges

99-910-6625 Softwood Wedge 203 X 44mm

99-910-6627 Softwood Wedge 67 X 75mm

99-461-6298 Softwood Wedge 250 x 100 x 50

99-461-6297 Softwood Wedge 150 x 75 x 25

99-461-6295 Softwood Wedge 100 x 25 x 25

99-461-6296 Softwood Wedge 127 x 50 x 23

99-461-6297 Softwood Wedge 150 x 75 x 23

99-461-6298 Softwood Wedge 250 x 85 x 48

99-461-6285 Soft wood Wedge 75 x 20 x 10mm

99-461-6310 Softwood Wedge 255 x 75 x 50

99-461-6311 Softwood Wedge 75 x 25 x 23

99-461-6312 Softwood Wedge 255 x 150 x 38

Soft wood wedge 90x 50 x 10.5mm

Soft wood wedge 70x 25 x 10.5mm

Soft wood wedge 160x 60 x 10.3mm

Hard Wood Wedges (Iroko)

Hard Wood Wedge 200mm (l) x 60mm (w) X 40mm (h)

Hard Wood Wedge 150mm (l) x 40mm (w) X 40mm (h)

Hard Wood Wedge 200mm (l) x 60mm (w) x 40mm (d)

Pad Piece

Pad Piece 300mm x 300mm x 50mm thick

Shoring Timbers

Shoring Timber: - Sawn 50mm x 50mm x3M

Shoring Timber: - Planed 50mm x 50mm x3M

Shoring Timber 100mm x 100mm x 3M

Shoring Timber 150mm x 150mm x 4.5M

Softwood T & G 32mm thick, 150mm wide x 3M long

Softwood T & G 75mm thick, 225mm wide x 3M long

Shoring Prop Pine 3000mm x 94mm x 94mm

Shoring Prop Pine 1,500mm x 94mm x 94mm

Shoring Prop Pine 1,500mm x 150mm x 40mm

Pumps

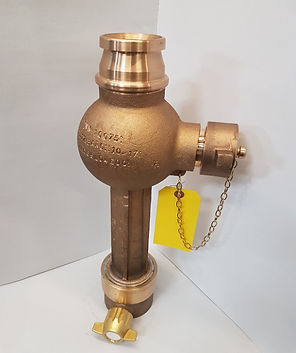

Portable Educator

0241/4730-99-525-3798 Educator Portable GM 2.5" GM DGS 203aA - comprising Body, Nozzle & Elbow, 15t per Hour Capacity. Length x 18.06"
